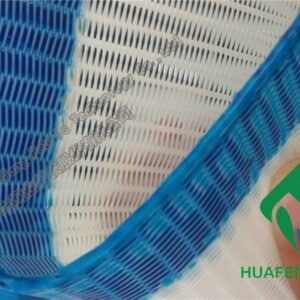

Woven Dryer Screen Flat Yarn U$45/SQM
Original price was: 6,850.00৳ .5,500.00৳ Current price is: 5,500.00৳ .Water Softner Twin Type
Original price was: 550,000.00৳ .425,000.00৳ Current price is: 425,000.00৳ .Stores
Find retail locations
Free Shipping
For orders above €100
Customer Care
For All Your Questions
- BPPTA
- TEC-NAF IMPORTS
2400mm crescent former facial tissue machine 14gsm@6tpd
Large 2400mm crescent former facial tissue paper making machine, paper straw making machines, home paper recycling project
Product Category : Tissue Paper Machine
Technical data:
1.Output paper:toilet paper,tissue paper.
2.Output weight:13-40g/m2
3.Net paper width: 2400mm
4.Wire width：2850mm
5.Capacity: 7-8t/d
6.Working speed：100-180m/min
7.Rail gauge：3500mm
8.Drive way：AC frequency converter and adjustable speed, drive part by part.
1.cylinder section:
Ф1500mm stainless steel cylinder mould 1set
2.couch roll section：
Size of couch roll isФ450mm,material of roll body is seamless steel pipe.
Thickness is 14mm . roll surface is coated by rubber,rubber
hardness HSD 38℃±2.
3.frame:
Frame of cylinder section is welded with shaped steel.thickness is 10mm.
4.washing device of cylinder section:
Pulp-spraying Pressure former adapt water pressing type.spray pipe DG32 stainless steel .ceramics hard wearing nozzle .
5.felt washing section:
High pressure cleaning device 2 sets
6.vacuum suction box :2set in all
7.body frame:
body frame is iron casting.material is HT200.
8.dryer cylinder :
Dryer cylinder Φ 2500mmbearing type dryer cylinder.
9.scraper of dryer cylinder:
Scraper of dryer cylinder is pneumatic,include air control chest, air cylinder.
10.touch roll:
Touch roll Φ 550 ,roll body(iron casting)surface rubber coating thickness is 25mm,shore hardness is 93°, pneumatic pressurizing ,include tyre, aircontrol chest but not contains air pump. equipped with 113632bearing.fluted rolls.
11. sink roll:
Φ194 seamless steel pipe
12. spreader roll:
Φ230 rubber coating of the surface ,rubber coating thickness is 15mm，shore hardness 93±2℃，equipped with bearing 3612.
13. exhaust hood of dryer cylinder:
Exhaust hood of the dryer can is type of respiration. include blowing fan、draft fan、radiator.
14. This machine is equipped with electromotion blanket tightening implement.pneumatic adjusting blanket implement.
15. Winding part:
sweat cylinder Φ900,equipped with bearing(113520 )
3SSB Forming Fabrics Tissue U$85/SQM
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum. Aliquet mus a aptent ullam corper metus accumsan. Habitasse a purus nec ipsum a urna ac ullamcorper varius metus blandit posuere.
A4 paper making machine 100tpd @80gsm WW:3200mm for sale
A4 paper is defined by the ISO 216 standard of the International Organization for Standardization; its specification is 21 cm × 29.7 cm. A4 paper machine is suitable for office paper, printing and copying paper, and supports different weights per unit area and production capacities.
TEC-NAF is a professional supplier of paper machine equipment, specializing in the research and production of paper machines. Our product includes pulp mill machinery, spare parts, and paper production lines, such as printing paper machines, packaging paper machines, and special paper machines.
Ceramic Hydrofoil with SS Box
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum.
DESCALER Boiler De scaling 25kg/Drum
Nam gravida vulputate est venenatis eu at ullamcorper consectetur parturient suspendisse a elit lobortis ut convallis vestibulum vulputate nunc praesent mattis sem faucibus risus sociosqu.Dapibus curae a ac vestibulum a magnis ullamcorper orci a iaculis adipiscing augue a massa a torquent feugiat a. Scelerisque vestibulum.

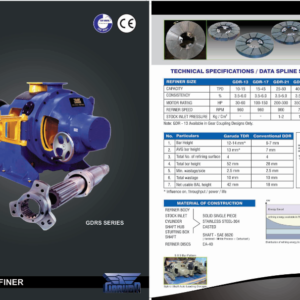

Double Disc Refiner
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum. Aliquet mus a aptent ullam corper metus accumsan. Habitasse a purus nec ipsum a urna ac ullamcorper varius metus blandit posuere.

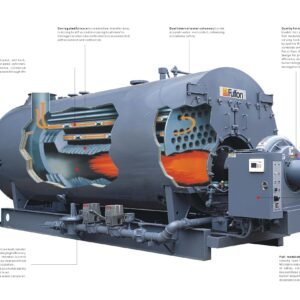

Fulton FBC Boiler 12 Ton/Hr Gas+Diesel
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum. Aliquet mus a aptent ullam corper metus accumsan. Habitasse a purus nec ipsum a urna ac ullamcorper varius metus blandit posuere.
Headbox Paper Machine
The paper material is evenly distributed along the width of the paper machine.(This determines the horizontal distribution of the paper weight).
Open headbox
open headbox control the speed of the pulp speed by controlling the lever of pulp in the box. This control way make open headbox have good performance in medium and low-speed paper machines. It is suitable for paper machines with a speed range below 200 m/min.
It could efficiently disperse fiber. The high turbulence headbox can generate high-intensity micro-turbulence, could efficiently disperse fiber to prevent precipitation and flocculation, and enhance the strength of the paper.
It maintains a stable spraying pattern and ensure pulp speed is coordinated with the net speed.
Excellent quality
The headbox adopts a modular design, and its structure is compact. It could greatly reduce weight and space occupied. This design is not only easy to operate and maintain, but also provides the possibility for future upgrades to a multi-functional headbox.
Superior performance
our headbox could uniformly distribute paper material along the width direction of the paper machine. It ensures that the speed, concentration, and turbulence distribution of each point on the banner are consistent, and avoids uneven vertical or horizontal flow patterns.
High profitability
Our headbox has a price advantage among the peers. You should not invest a large amount of capital. You just need a little capital, then own the machine and get a great return on your investme
Wide application
Our headbox are suitable for paper machines ranging from 200 to 1500 meters per minute and can be customized. As long as you tell us the paper machine speed, we can provide you with the appropriate headb
Kraft Liner Paper Machine 150GSM@200TPD WW3200mm 400mpm
linerboard paper machine
Our linerboard paper machine could produce kraft linerboard, testliner, and white-top linerboard.
Linerboard paper is the outer and inner liner paper of corrugated cardboard, combined with the corrugated core paper. It must have good ring compression strength (RCT), burst strength, and compressive strength to protect the goods during transportation.
- Good paper performance
- Wide application
- Low running cost
- Customized service
Q: Can one linerboard paper machine produce both kraft liner and testliner?
By adjust the pulp formula(unprocessed raw pulp and recycled fibers) , refinement degree, base weight and the amount of chemical additives, this machine will achieve the following conversion. For example, we could produce kraft linerboard, Testliner and white-top linerboard.
Q: What capacity range can your linerboard paper machines cover?
We can provide linerboard production lines with an output ranging from 30 to 45 tons per day for small factories, and equipment with an output of over 45 to 750 tons per day for large high-speed production lines. This could be customized according to your requirements.
