2400mm crescent former facial tissue machine 14gsm@6tpd
Original price was: 25,000,000.00৳ .17,500,000.00৳ Current price is: 17,500,000.00৳ .

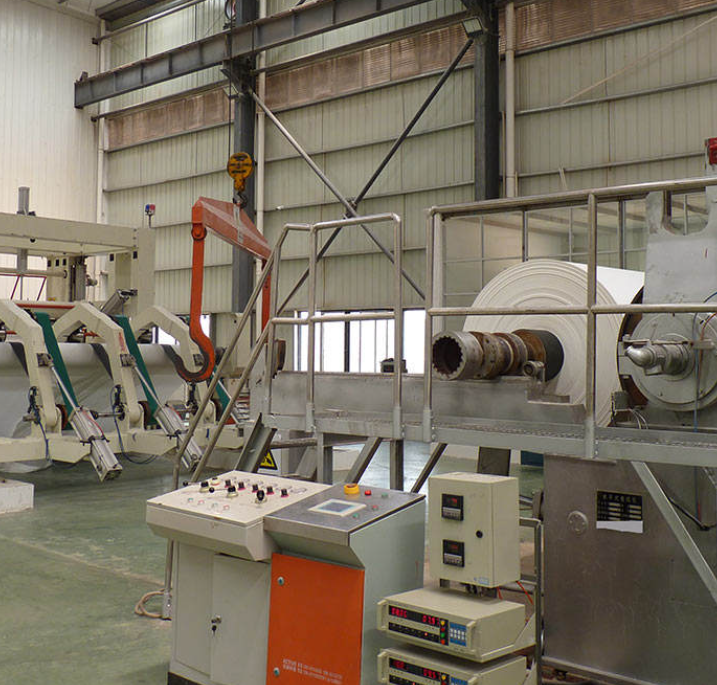

Large 2400mm crescent former facial tissue paper making machine, paper straw making machines, home paper recycling project
Product Category : Tissue Paper Machine
Technical data:
1.Output paper:toilet paper,tissue paper.
2.Output weight:13-40g/m2
3.Net paper width: 2400mm
4.Wire width：2850mm
5.Capacity: 7-8t/d
6.Working speed：100-180m/min
7.Rail gauge：3500mm
8.Drive way：AC frequency converter and adjustable speed, drive part by part.
1.cylinder section:
Ф1500mm stainless steel cylinder mould 1set
2.couch roll section：
Size of couch roll isФ450mm,material of roll body is seamless steel pipe.
Thickness is 14mm . roll surface is coated by rubber,rubber
hardness HSD 38℃±2.
3.frame:
Frame of cylinder section is welded with shaped steel.thickness is 10mm.
4.washing device of cylinder section:
Pulp-spraying Pressure former adapt water pressing type.spray pipe DG32 stainless steel .ceramics hard wearing nozzle .
5.felt washing section:
High pressure cleaning device 2 sets
6.vacuum suction box :2set in all
7.body frame:
body frame is iron casting.material is HT200.
8.dryer cylinder :
Dryer cylinder Φ 2500mmbearing type dryer cylinder.
9.scraper of dryer cylinder:
Scraper of dryer cylinder is pneumatic,include air control chest, air cylinder.
10.touch roll:
Touch roll Φ 550 ,roll body(iron casting)surface rubber coating thickness is 25mm,shore hardness is 93°, pneumatic pressurizing ,include tyre, aircontrol chest but not contains air pump. equipped with 113632bearing.fluted rolls.
11. sink roll:
Φ194 seamless steel pipe
12. spreader roll:
Φ230 rubber coating of the surface ,rubber coating thickness is 15mm，shore hardness 93±2℃，equipped with bearing 3612.
13. exhaust hood of dryer cylinder:
Exhaust hood of the dryer can is type of respiration. include blowing fan、draft fan、radiator.
14. This machine is equipped with electromotion blanket tightening implement.pneumatic adjusting blanket implement.
15. Winding part:
sweat cylinder Φ900,equipped with bearing(113520 )
