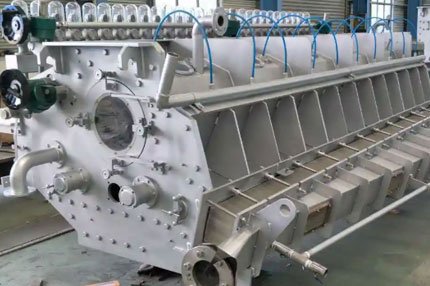

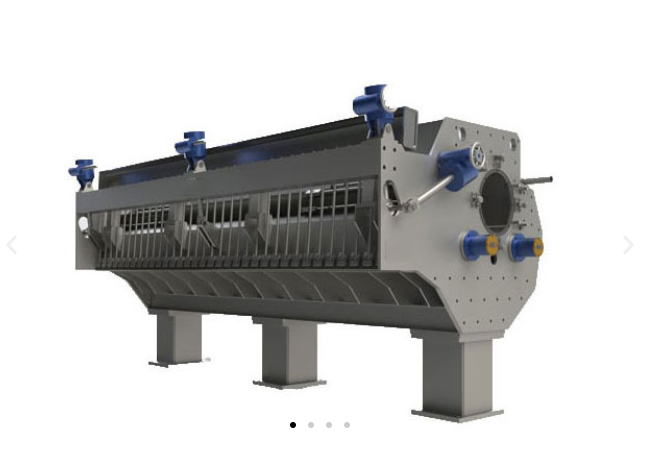

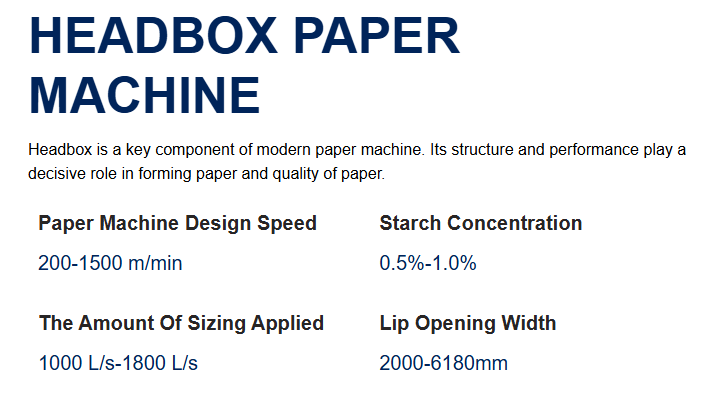

Headbox Paper Machine
Original price was: 7,550,000.00৳ .6,575,000.00৳ Current price is: 6,575,000.00৳ .

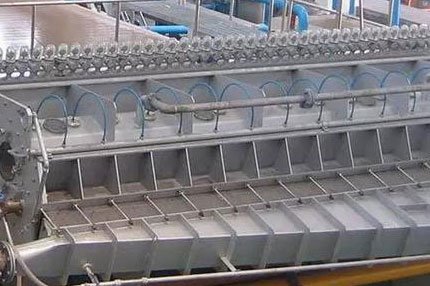

The paper material is evenly distributed along the width of the paper machine.(This determines the horizontal distribution of the paper weight).

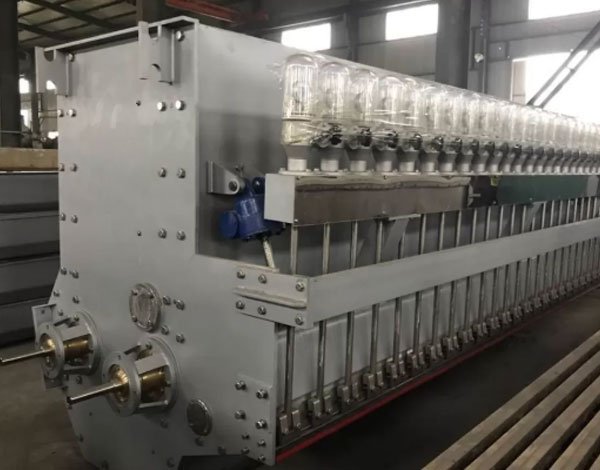

Open headbox
open headbox control the speed of the pulp speed by controlling the lever of pulp in the box. This control way make open headbox have good performance in medium and low-speed paper machines. It is suitable for paper machines with a speed range below 200 m/min.
It could efficiently disperse fiber. The high turbulence headbox can generate high-intensity micro-turbulence, could efficiently disperse fiber to prevent precipitation and flocculation, and enhance the strength of the paper.
It maintains a stable spraying pattern and ensure pulp speed is coordinated with the net speed.
Excellent quality
The headbox adopts a modular design, and its structure is compact. It could greatly reduce weight and space occupied. This design is not only easy to operate and maintain, but also provides the possibility for future upgrades to a multi-functional headbox.
Superior performance
our headbox could uniformly distribute paper material along the width direction of the paper machine. It ensures that the speed, concentration, and turbulence distribution of each point on the banner are consistent, and avoids uneven vertical or horizontal flow patterns.
High profitability
Our headbox has a price advantage among the peers. You should not invest a large amount of capital. You just need a little capital, then own the machine and get a great return on your investme
Wide application
Our headbox are suitable for paper machines ranging from 200 to 1500 meters per minute and can be customized. As long as you tell us the paper machine speed, we can provide you with the appropriate headb
