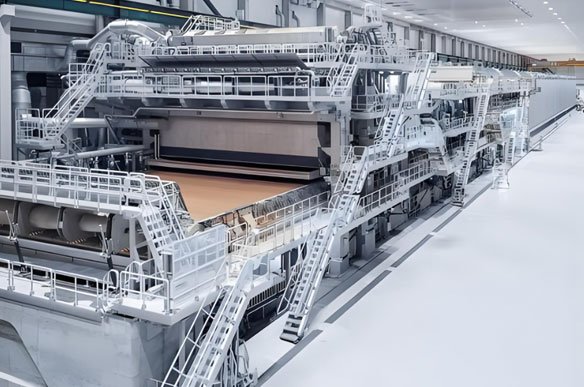

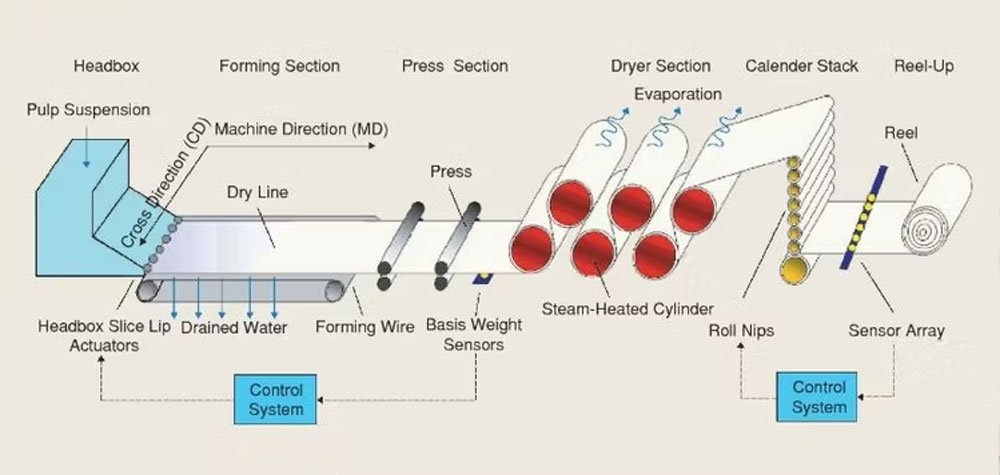

linerboard paper machine

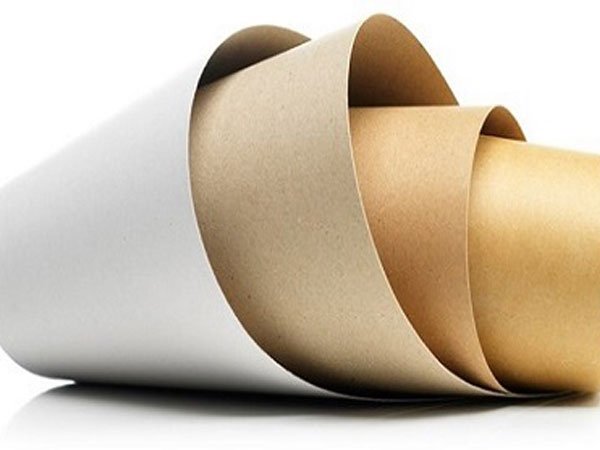

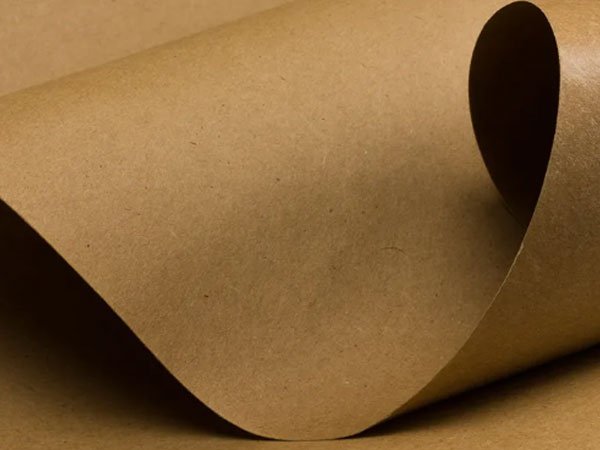

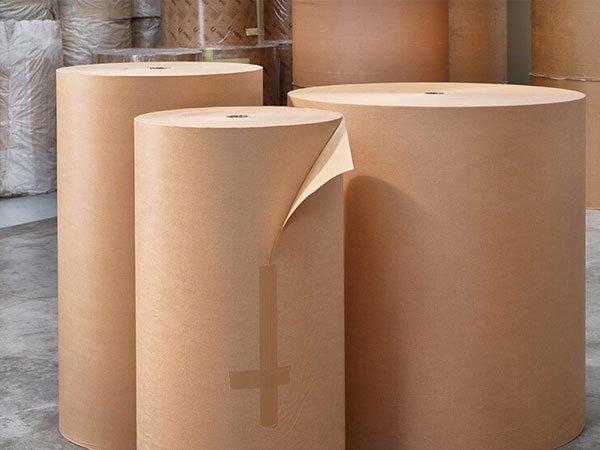

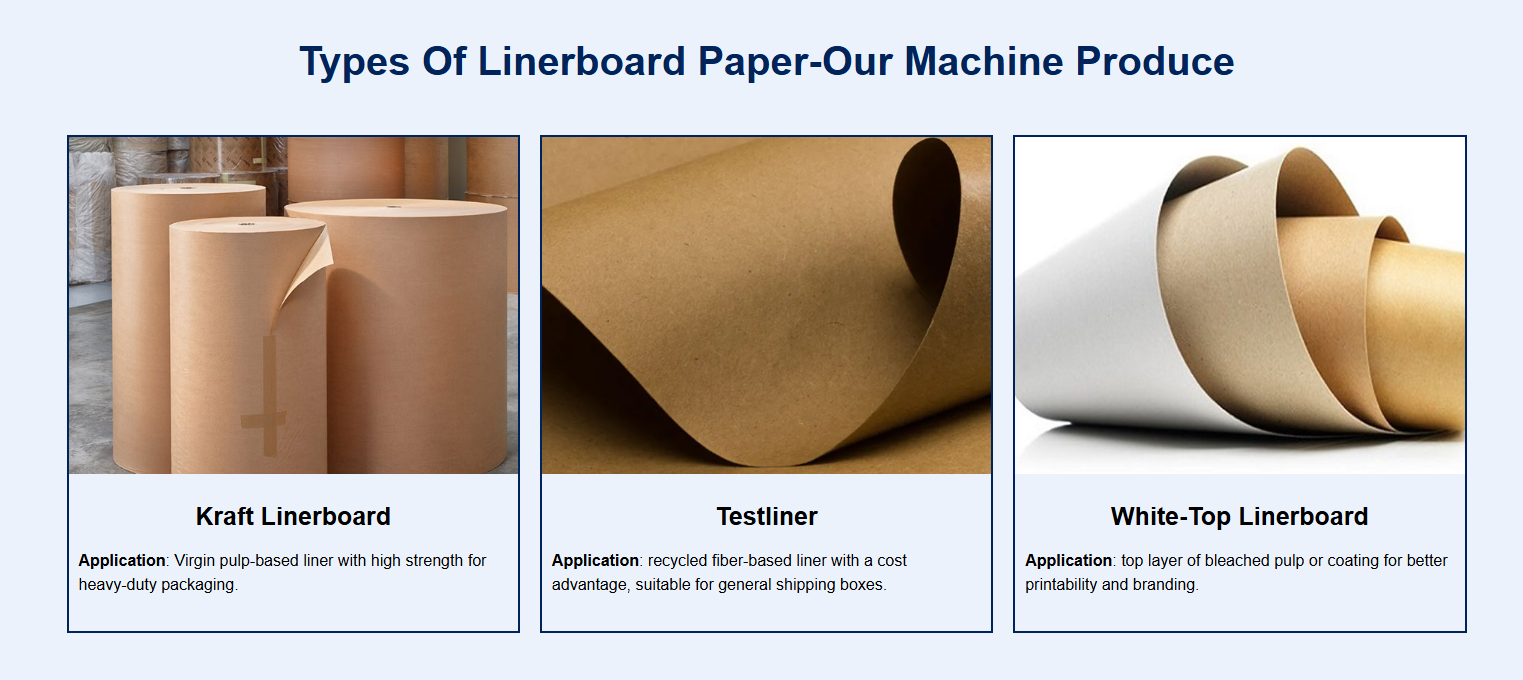

Our linerboard paper machine could produce kraft linerboard, testliner, and white-top linerboard.

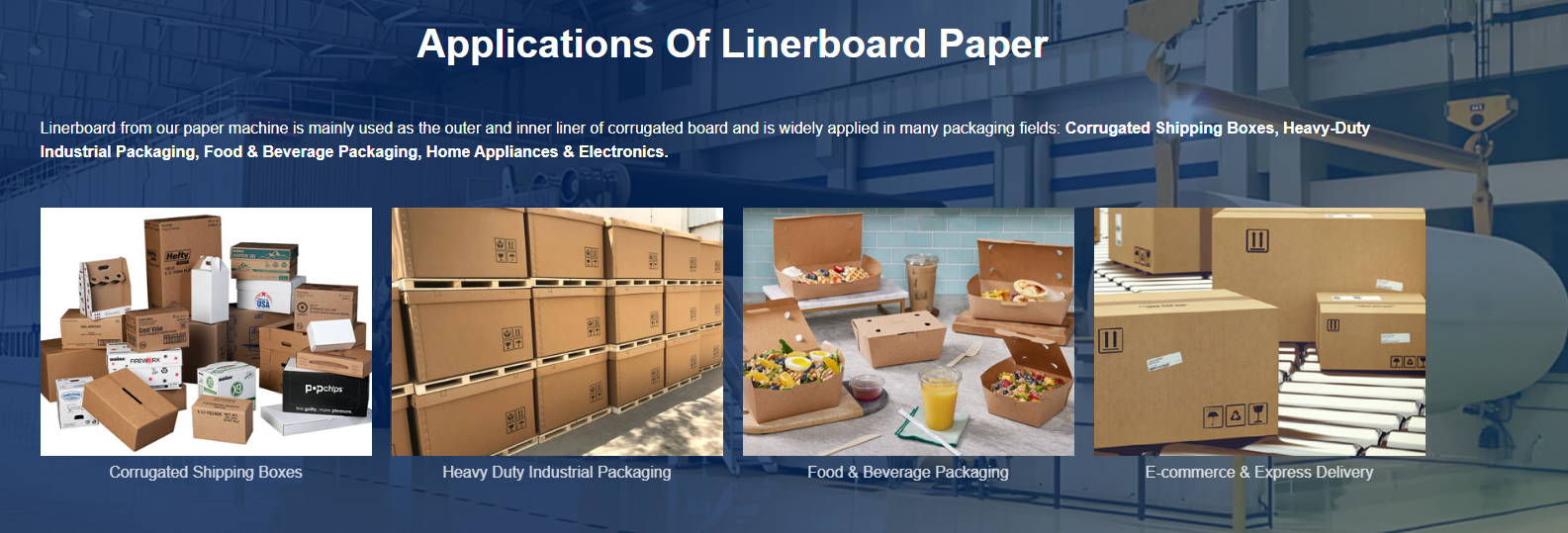

Linerboard paper is the outer and inner liner paper of corrugated cardboard, combined with the corrugated core paper. It must have good ring compression strength (RCT), burst strength, and compressive strength to protect the goods during transportation.

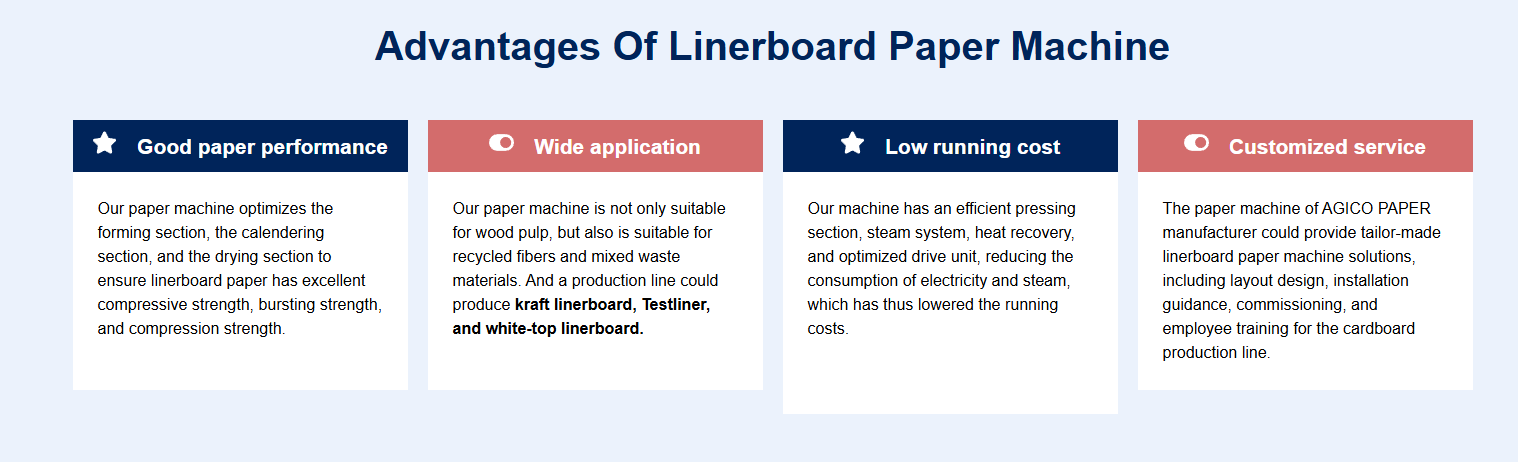

- Good paper performance
- Wide application
- Low running cost
- Customized service
Q: Can one linerboard paper machine produce both kraft liner and testliner?
By adjust the pulp formula(unprocessed raw pulp and recycled fibers) , refinement degree, base weight and the amount of chemical additives, this machine will achieve the following conversion. For example, we could produce kraft linerboard, Testliner and white-top linerboard.
Q: What capacity range can your linerboard paper machines cover?
We can provide linerboard production lines with an output ranging from 30 to 45 tons per day for small factories, and equipment with an output of over 45 to 750 tons per day for large high-speed production lines. This could be customized according to your requirements.
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
A4 paper making machine 100tpd @80gsm WW:3200mm for sale
A4 paper is defined by the ISO 216 standard of the International Organization for Standardization; its specification is 21 cm × 29.7 cm. A4 paper machine is suitable for office paper, printing and copying paper, and supports different weights per unit area and production capacities.
TEC-NAF is a professional supplier of paper machine equipment, specializing in the research and production of paper machines. Our product includes pulp mill machinery, spare parts, and paper production lines, such as printing paper machines, packaging paper machines, and special paper machines.
Newsprint paper machine for sale 50TPD @55gsm WW: 2800mm
- Newsprint paper is widely used in the production of printed materials such as newspapers, magazines, and books etc. Due to the characteristics of strong ink absorption and excellent printing effect, newsprint paper has become the preferred material for newspaper printing. At the same time, with the development of digital technology, newsprint paper has an important influence on the field of electronic reading, such as the carrier of e-books or used for printing electronic documents.
- With the advent of the information age, the market demand for newsprint has continued to increase. As electronic reading gradually becomes popular, printed newspapers and books still hold an irreplaceable position. Newsprint paper will develop in the direction of higher quality and greater environmental friendliness in the future. For example, adopt more advanced pulp-making and paper-making technology, and improve the strength and printing performance of newsprint paper. At the same time, enhance environmental protection measures and reduce pollution emissions during the production process.
-
High-speed and stable operation
Our paper machine could achieve stable operation with high speed, stable paper formation, and reduce the occurrence of paper breakage. Thereby, high-quality and stable newsprint paper can be efficiently produced.Flexible modular design
Our paper machine supports 20-500tpd capacity, and could expand configuration according to specific needs, and could adjust GSM range. Flexible modular design makes production more flexible and adjustable.Reduce energy consumption
Our paper machine is well-designed in an efficient pressing section and drying step, resulting in a reduction in steam and electricity consumption. Using our paper machine could reduce energy consumption and finally reduce the total running cost.Comprehensive technical support

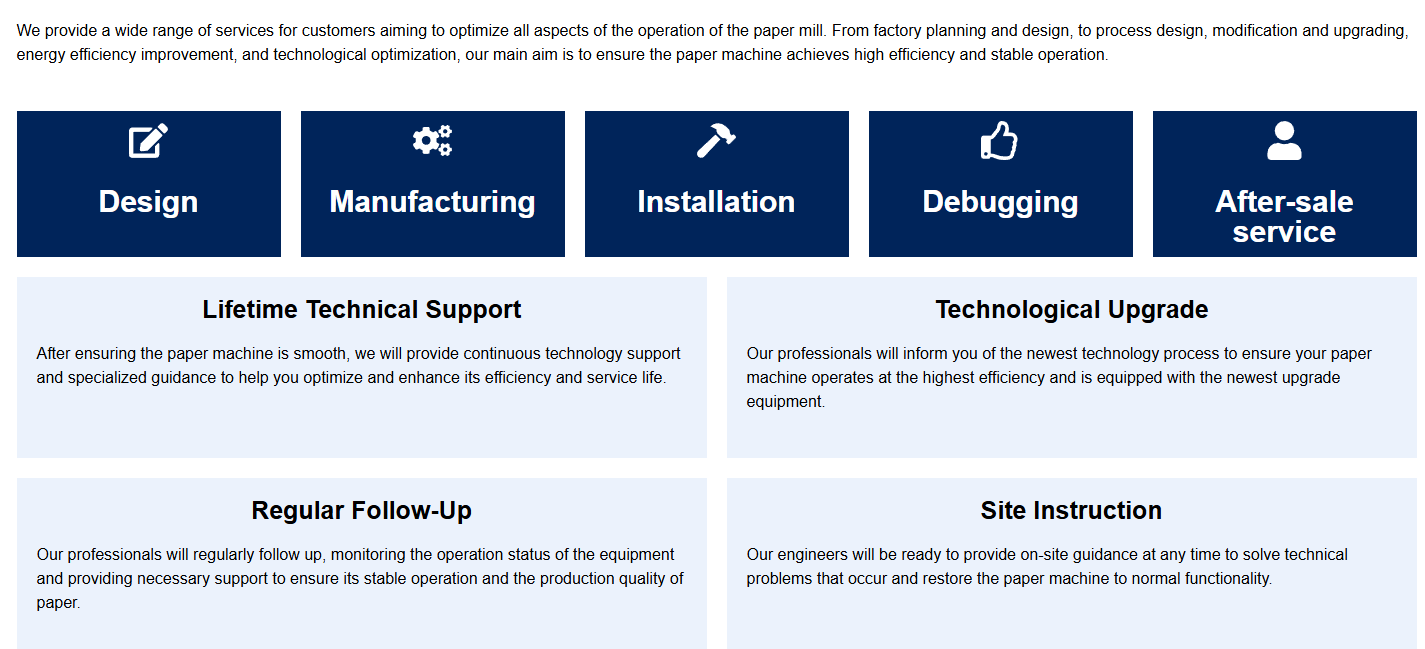

TEC-NAF supplies design, installation, debugging, and operator training services to ensure the making plant can quickly start and achieve long-term stable operation.
Ceramic Hydrofoil with SS Box
Consequat a scelerisque suspendisse vel et eget eu vitae adipiscing nibh scelerisque semper cum adipiscing facilisis adipiscing est accumsan lorem vestibulum.
Headbox Paper Machine
The paper material is evenly distributed along the width of the paper machine.(This determines the horizontal distribution of the paper weight).
Open headbox
open headbox control the speed of the pulp speed by controlling the lever of pulp in the box. This control way make open headbox have good performance in medium and low-speed paper machines. It is suitable for paper machines with a speed range below 200 m/min.
It could efficiently disperse fiber. The high turbulence headbox can generate high-intensity micro-turbulence, could efficiently disperse fiber to prevent precipitation and flocculation, and enhance the strength of the paper.
It maintains a stable spraying pattern and ensure pulp speed is coordinated with the net speed.
Excellent quality
The headbox adopts a modular design, and its structure is compact. It could greatly reduce weight and space occupied. This design is not only easy to operate and maintain, but also provides the possibility for future upgrades to a multi-functional headbox.
Superior performance
our headbox could uniformly distribute paper material along the width direction of the paper machine. It ensures that the speed, concentration, and turbulence distribution of each point on the banner are consistent, and avoids uneven vertical or horizontal flow patterns.
High profitability
Our headbox has a price advantage among the peers. You should not invest a large amount of capital. You just need a little capital, then own the machine and get a great return on your investme
Wide application
Our headbox are suitable for paper machines ranging from 200 to 1500 meters per minute and can be customized. As long as you tell us the paper machine speed, we can provide you with the appropriate headb
Super Calender
We adopt a calender to process paper. Its surface becomes smoother and has higher glossiness.
calender technology provides advanced solutions for all kinds of paper. The calender is usually the final step in making paper to influence the properties of the paper. The calender machine is also used as a pre-calender before coating or sizing. Every investment you make must be able to recover its cost within a reasonable period of time. So you must choose a suitable solution for every application. TEC-NAF provides a reliable, quality and competitively priced calendaring machine for you.
Calender bowl: The calender machine is made of various calender bowls. These bowls are installed in the same frame, forming a vertical line arrangement. The lower roller is the driving roller, and the remaining rollers are driven by friction. The quantity and arrangement mode of the calender bowl are determined according to the speed of the paper production machine and the type of paper, usually 3 to 8 rollers.
Frame: The frame is used to support the entire calender bowl and other parts to ensure the stability and accuracy of the equipment.
Scraper: The scraper is used to help paper transport between the calender bowl, ensuring the paper could be the equal application of pressure during a pass through the calender bowl.
Compression system: Compression systems usually adopt hydraulic loading devices, which could provide enough pressure to ensure paper achieves ideal flatness during the calender process. The maximum load can reach 330 kN/m².
Cooling system: To eliminate heat that is generated during the calender process, the two rollers at the bottom of the calender machine are equipped with a ventilation cooling system. It ensure equipment can operate stable operation in high temperature.
Control system: It includes an electrical control system and hydraulic system, which is used to precisely adjust the pressure and speed and ensure calender effect and quality.
2400mm crescent former facial tissue machine 14gsm@6tpd
Large 2400mm crescent former facial tissue paper making machine, paper straw making machines, home paper recycling project
Product Category : Tissue Paper Machine
Technical data:
1.Output paper:toilet paper,tissue paper.
2.Output weight:13-40g/m2
3.Net paper width: 2400mm
4.Wire width：2850mm
5.Capacity: 7-8t/d
6.Working speed：100-180m/min
7.Rail gauge：3500mm
8.Drive way：AC frequency converter and adjustable speed, drive part by part.
1.cylinder section:
Ф1500mm stainless steel cylinder mould 1set
2.couch roll section：
Size of couch roll isФ450mm,material of roll body is seamless steel pipe.
Thickness is 14mm . roll surface is coated by rubber,rubber
hardness HSD 38℃±2.
3.frame:
Frame of cylinder section is welded with shaped steel.thickness is 10mm.
4.washing device of cylinder section:
Pulp-spraying Pressure former adapt water pressing type.spray pipe DG32 stainless steel .ceramics hard wearing nozzle .
5.felt washing section:
High pressure cleaning device 2 sets
6.vacuum suction box :2set in all
7.body frame:
body frame is iron casting.material is HT200.
8.dryer cylinder :
Dryer cylinder Φ 2500mmbearing type dryer cylinder.
9.scraper of dryer cylinder:
Scraper of dryer cylinder is pneumatic,include air control chest, air cylinder.
10.touch roll:
Touch roll Φ 550 ,roll body(iron casting)surface rubber coating thickness is 25mm,shore hardness is 93°, pneumatic pressurizing ,include tyre, aircontrol chest but not contains air pump. equipped with 113632bearing.fluted rolls.
11. sink roll:
Φ194 seamless steel pipe
12. spreader roll:
Φ230 rubber coating of the surface ,rubber coating thickness is 15mm，shore hardness 93±2℃，equipped with bearing 3612.
13. exhaust hood of dryer cylinder:
Exhaust hood of the dryer can is type of respiration. include blowing fan、draft fan、radiator.
14. This machine is equipped with electromotion blanket tightening implement.pneumatic adjusting blanket implement.
15. Winding part:
sweat cylinder Φ900,equipped with bearing(113520 )
Soft calender machine
The calender machine is the auxiliary equipment for the paper production machine. It is mainly used for calendering the paper produced by the paper machine to increase paper quality and glossiness. Its work principle is that the pressure roller compacts the paper to make the paper smoother and flatter.
Paper web :1880-10000mm
calendar machine Speed :50-100m/min
Linear pressure: 50-300kN/m
Temperature: 180℃ Max
Calender bowl: The calender machine is made of various calender bowls. These bowls are installed in the same frame, forming a vertical line arrangement. The lower roller is the driving roller, and the remaining rollers are driven by friction. The quantity and arrangement mode of the calender bowl are determined according to the speed of the paper production machine and the type of paper, usually 3 to 8 rollers.
Frame: The frame is used to support the entire calender bowl and other parts to ensure the stability and accuracy of the equipment.
Scraper: The scraper is used to help paper transport between the calender bowl, ensuring the paper could be the equal application of pressure during a pass through the calender bowl.
Compression system: Compression systems usually adopt hydraulic loading devices, which could provide enough pressure to ensure paper achieves ideal flatness during the calender process. The maximum load can reach 330 kN/m².
Cooling system: To eliminate heat that is generated during the calender process, the two rollers at the bottom of the calender machine are equipped with a ventilation cooling system. It ensure equipment can operate stable operation in high temperature.
Control system: It includes an electrical control system and hydraulic system, which is used to precisely adjust the pressure and speed and ensure calender effect and quality.
